article no: HDTS01

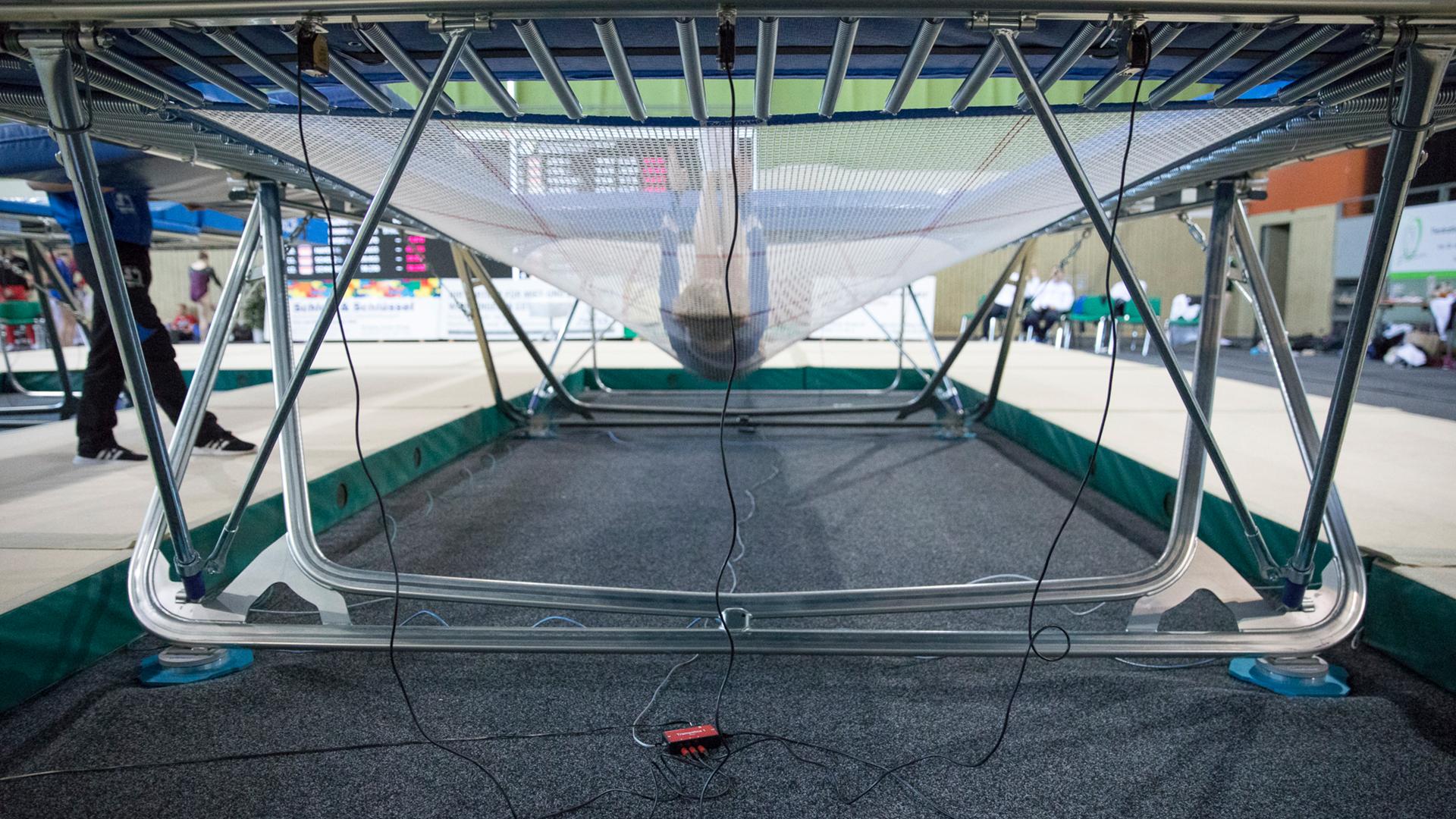

HDTS trampoline measurement device

Perfect tool for competitions, training documentation and training control

The new HDTS Trampoline measurement device offers the following measurement functions:
• ToF (Time of Flight)
• HD (Horizontal Displacement)
• SYN (Synchronicity)

One set consists of (quantity):
• USB Master Box (1×)
• Silver cable (connects the USB-Master Box to the PC) (2×)
• USB flash drive with PC software (1×)
• Measuring plates HDTS for two trampolines (4 measuring plates per trampoline) (8×)
• Green cables (ethernet cables for connecting measuring plates 2 and 3) (2×)
• Blue cables (ethernet cables for connecting measuring plates 1 and 2, 3 and 4 respectively) (4×)
• Grey cables (ethernet cables for connecting the USB Master Box with measuring plate 1) (2×)
• USB button/buzzer (1×)
• USB cable for button/buzzer (1×)

NEW QIRA VERSION 2.2.0 NOW AVAILABLE! ALL CHANGES IN THE SOFTWARE AT A GLANCE:

Changes required by the FIG 2022 Code of Points
• The T-score (time of flight score) is evaluated as sum of the times of flight for each element rounded down to 1/100
• In synchronized routines, Qira will identify interruption when there is a difference in landing of 0.400 seconds
• After 151 seconds, Qira will send a sound warning, so gymnast and coach are informed about the risk of not being allowed to start the exercise

Usability Improvements:

• Auto save to file now allows to organize the files in subfolders, for example by group or competition
 • The ready page now shows the result of the previous routine

Fixes:
 • Fix trampoline configuration so that changes take effect immediately and not only after restarting the software

Patented Patented
The HDTS trampoline measurement system is protected by patent law. European Patent No.: 2962736.
  • details
  • accessories
  • spare parts
  • downloads

    Following we provide all available downloads referring to HDTS trampoline measurement device.

    • FIG certificate
      FIG certificate
      HDTS Trampoline Measurement System / HDMD Horizontal Displacement Measurement Device (Apparatus ID: 269)
    • Factsheet
      Factsheet
      HDTS Trampoline Measurement Device
    • Software
      Software
      QIRA V2.2.0 // HDTS (contains changes according to the FIG Code of Points 2022)
    • Changelog
      Changelog
      QIRA V2.2.0 // HDTS (contains changes according to the FIG Code of Points 2022)
    • Operating instructions / manual
      Operating instructions / manual
      HDTS Trampoline Measurement System & Qira software v2.2.0 (contains changes according to the FIG Code of Points 2022)
    • Software
      Software
      QIRA V2.1.0 // HDTS
    • Changelog
      Changelog
      QIRA V2.1.0 // HDTS
    • Operating instructions / manual
      Operating instructions / manual
      HDTS Trampoline Measurement System & Qira software v2.1.0
    • Checklists
      Checklists
      Competition checklist HDTS
