article no: 03000-03266

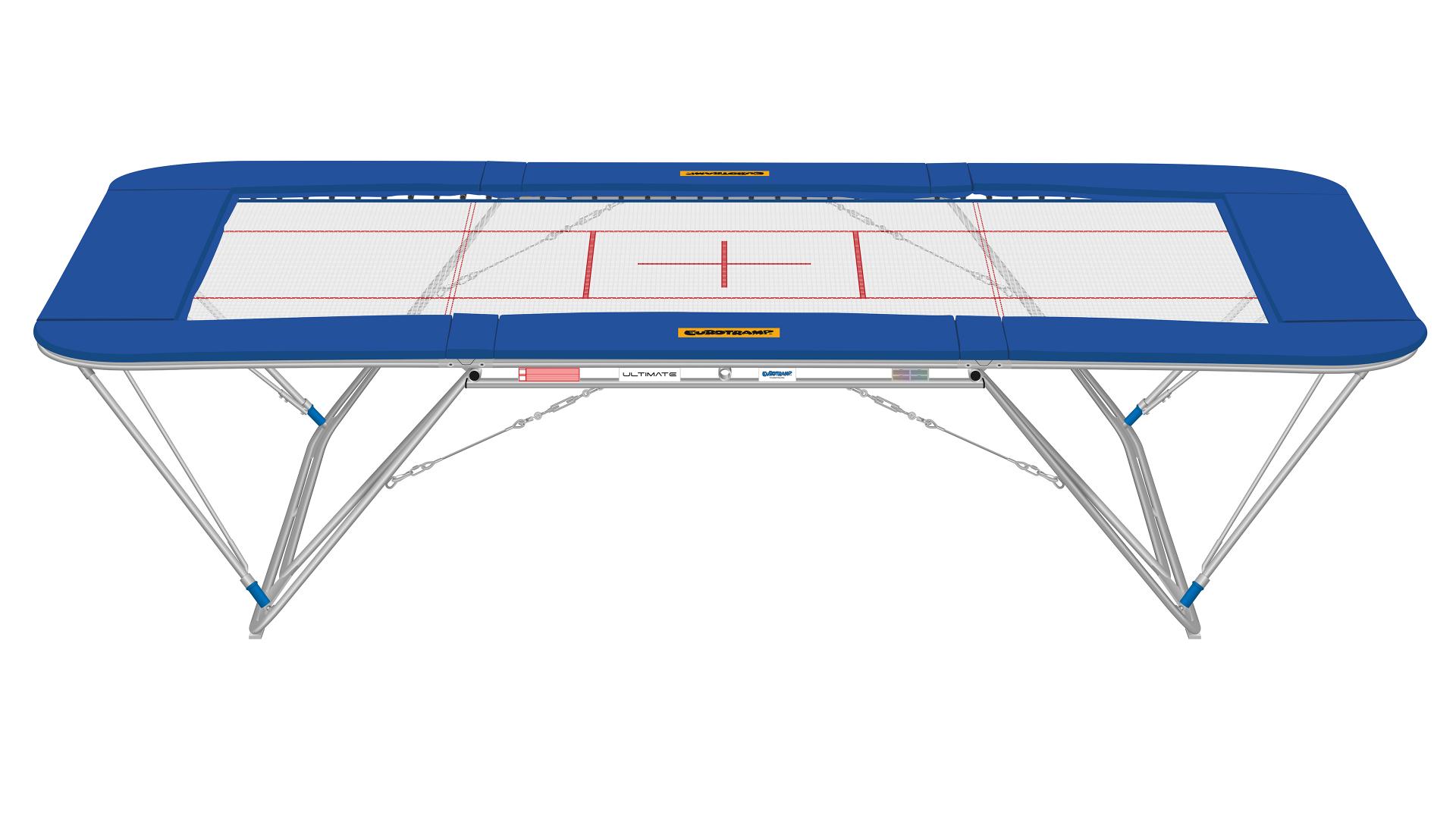

Ultimate

FIG certified competition trampoline for national & international competitions

The Ultimate competition trampoline was tried, tested and developed by many of the world´s best gymnasts and the friendly support of Rebound Products (Dave Ross). It has outstanding improvements in durability, usability, safety and stability and is the competition trampoline for the next national and international trampoline competitions. The Ultimate was used at the Olympic Games 2016 in Rio de Janeiro!

TÜV-certified (EN 13219) TÜV-certified (EN 13219)
The trampoline is TÜV-certified according to EN 13219.
Made in Germany Made in Germany
Equipment is produced exclusively in our factory in Weilheim/Teck (Germany). We guarantee the use of only the highest quality raw materials in order to guarantee outstanding quality of all components as well as safety and reliability.
FIG approved FIG approved
For competitions, the International Gymnastics Federation (Fédération Internationale de Gymnastique, FIG) has exact specifications of the construction type of the trampoline to be used at competitions. All trampolines and accessories used in competitions and supplied by Eurotramp have a valid FIG certificate.
Patented Patented
The „Easy-Lock-System“ is protected by patent law. European Patent No.: 2603293.
  • details
  • accessories
  • spare parts

    We offer various spare parts for Ultimate.

    • Jumping beds
      • Article-No.: E26410 Jumping bed 4×4 mm - sewn-in anchor bars

        Jumping bed made of 4×4 mm wide nylon strands, complete with sewn-in anchor bars. Size: 426 × 213 cm. For Ultimate model types.

      • Article-No.: E25410 Jumping bed 5×4 mm - sewn-in anchor bars

        Jumping bed made of 5×4 mm wide nylon strands, complete with sewn-in anchor bars. Size: 426 × 213 cm. For Ultimate model types.

      • Article-No.: E26210 Jumping bed 6×4 mm - sewn-in anchor bars

        Jumping bed made of 6×4 mm wide nylon strands, complete with sewn-in anchor bars. Size: 426 × 213 cm. For Ultimate model types.


      • Article-No.: E26310 Jumping bed 6×6 mm - sewn-in anchor bars

        Jumping bed made of 6×6 mm wide nylon strands, complete with sewn-in anchor bars. Size: 426 × 213 cm. For Ultimate and Grand Master Exclusiv model types.

      • Article-No.: E21510 Jumping bed 13 mm

        Jumping bed made of 13 mm wide nylon strands. With anchor bars. Size: 426 × 213 cm. For Ultimate and Grand Master model types.

    • Jumping bed accessories & corresponding spare parts
      • Article-No.: E20005 Anchor bar

        Anchor bar to fit jumping bed for Ultimate, Grand Master, Master and Minitramp.

      • Article-No.: E26000 DIY set

        Set for applying additional markings on competition jumping beds (426 × 213 cm) conform to FIG norms. Consists of: metal stencil, paint tray, bottle of appropriate for direct application (for 2 jumping beds), paint roller, manual.

      • Article-No.: E26001 Bottle of special paint for new jumping bed markings (1 piece)

        Bottle of the special paint for the new jumping bed markings in according to FIG norm. For direct application (for 2 jumping beds).

    • Frame pads
      • Article-No.: E11110 Frame pads - complete set - 32 mm

        Frame pads with fastening set for Ultimate and Grand Master models. Foam thickness: 32 mm, with innovative Velcro fastener.

      • Article-No.: E15110 Frame pads - short side - 32 mm

        Frame pads short side for Ultimate and Grand Master models. Foam thickness: 32 mm.

      • Article-No.: E14110 Frame pads - long side - 32 mm

        Frame pads long side for Ultimate and Grand Master models. Foam thickness: 32 mm.

      • Article-No.: E11111 Frame pads - complete set - 50 mm foldable

        Frame pads with fastening set for Ultimate and Grand Master models. Foam thickness: 50 mm, foldable.

      • Article-No.: E11115 Frame pads - complete set - 50 mm stationary

        Frame pads with fastening set for Ultimate and Grand Master models. Foam thickness: 50 mm stationary.

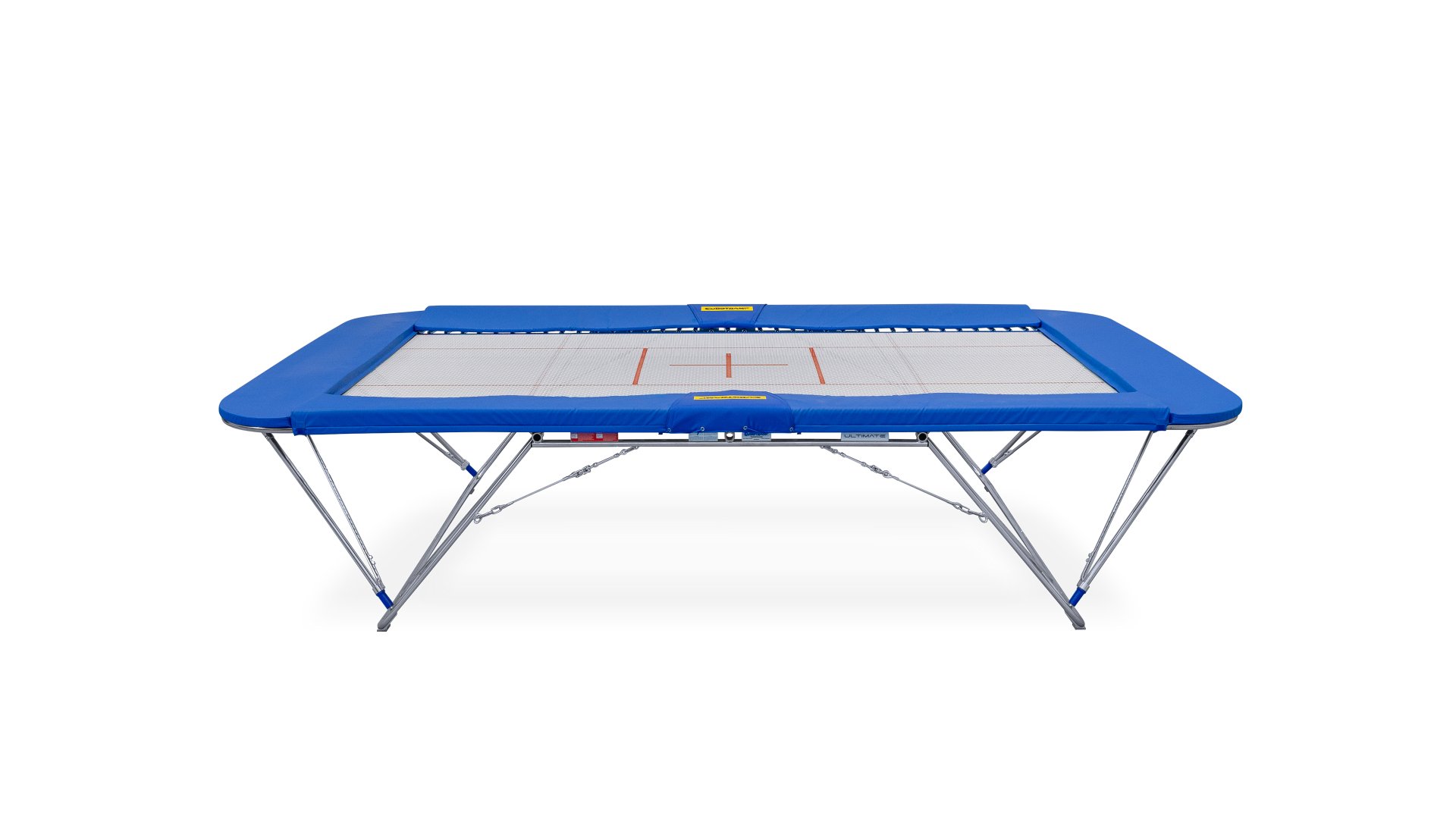

      • Article-No.: E11118 Frame pads set 80 mm SAFETY PLUS

        Frame pads set 80 mm SAFETY PLUS for Ultimate trampolines. Long side: 80/30 mm. Front side: 50 mm. Foldable, with fastening set (16 pad lifter), blue.

      • Article-No.: E11118-1 Frame pads 80 mm SAFETY PLUS, long side left

        Frame pads 80 mm SAFETY PLUS, long side left: 80/30 mm. For Ultimate trampolines.

      • Article-No.: E11118-2 Frame pads 80 mm SAFETY PLUS, long side right

        Frame pads 80 mm SAFETY PLUS, long side right: 80/30 mm. For Ultimate trampolines.

      • Article-No.: E11118-3 Frame pads 80 mm SAFETY PLUS, front side

        Frame pads 80 mm SAFETY PLUS, front side: 50 mm. For Ultimate trampolines.

      • Article-No.: E11118-4 Covering sleeve for frame pads 80 mm SAFETY PLUS

        Covering sleeve for frame pads 80 mm SAFETY PLUS. For Ultimate trampolines.

    • Frame pad accessories & corresponding spare parts
      • Article-No.: E13110 Fastening set for frame pads

        Fastening set for frame pads to fit model types "Grand Master". Consisting of 12× pad lifter, 4× steel springs 185×20 mm, 1× black belt.

      • Article-No.: E10095 Pad lifter

        Pad lifter to hold up frame pads. For model types Ultimate, Grand Master and Master.

      • Article-No.: E10096 Blue protection cap for pad lifter

        Blue protection cap for pad lifte. For large trampolines.

      • Article-No.: E11188 Add-on kit for fixation frame pads 80 mm SAFETY PLUS

        Add-on kit for fixation frame pads 80 mm SAFETY PLUS, consisting of 12 adaptors.

    • Steel springs/suspension
      • Article-No.: E31133 Steel springs, complete set (118 pieces)

        Complete set (118 pieces) consisting of 110 steel springs E31130 (length 258 mm, Ø 29 mm) and 8 enforced corner springs E31131 (length 258 mm, Ø 39 mm). For competition trampoline Ultimate.

      • Article-No.: E31130 Steel spring

        Steel spring (length 258 mm, Ø 29 mm) for Ultimate model types.

      • Article-No.: E31131 Enforced steel spring for corners

        Enforced corner spring for Ultimate model types and Double-Minitramp Ultimate. Length 258 mm, Ø 39 mm.

      • Article-No.: E10090 Steel spring

        Steel spring for fastening black belt. Length 185 mm, Ø 20 mm. For indoor use only.

    • Suspension accessories & corresponding spare parts
      • Article-No.: E31000 Mounting tool for steel springs

        Mounting tool for easier attaching of the steel springs. For Large Trampolines.

    • Spare parts for trampoline frame & Safety Platforms
      • Article-No.: E44020 Turnbuckle M10 (hole/hole)

        Turnbuckle M10 (hole/hole). For Grand Master and Master model types.

      • Article-No.: E44006 Plastic-coated steel rope

        Plastic-coated steel rope with turnbuckle M10, carabiner, quick link and rotary swivel. Total length 82 cm, steel rope 44 cm. For Ultimate model types.

      • Article-No.: E44028 Big quick link for chains

        Big quick link for chains. For fastening chains on large trampolines and Double-Minitramp Ultimate.

      • Article-No.: E46099 Tension pin for hinge

        Tension pin for hinge, Ø 11,8 mm.

      • Article-No.: E44146 Ball-joint-connection

        Ball-joint-connection ("Easy-Lock") of leg and leg support for Ultimate trampoline.

      • Article-No.: E44116 Plain bearing

        Plain bearing for hinge between large leg support and wing. For Ultimate trampolines.

      • Article-No.: E44117 Plain bearing

        Plain bearing to connect large and small leg support. For Ultimate trampolines.

      • Article-No.: E44115 Plain bearing / Spring wear grommet

        • Plain bearing at hinge between small leg support and wing for Ultimate.
        • Spring wear grommet to protect frame/steel springs against wear-off for Booster and Double-Minitramp Ultimate.

      • Article-No.: E46016 Plain bearing

        Bearing at hinge leg section and side rail for Ultimate trampoline (4 pieces).

      • Article-No.: E40005 Plastic cap for flat oval steel tube

        Plastic cap for flat oval steel tube. Size: 65 × 35 × 2,5 mm.

      • Article-No.: E40006 Plastic cap for 35 mm steel tube

        Plastic cap for steel tube, Ø 35 mm.

      • Article-No.: E45106 Floor protection with screws

        Floor protection with screws for Ultimate.

      • Article-No.: E44126 Blue handle piece

        Blue handle piece ("Easy-Lock") for leg brace. For Ultimate models.

      • Article-No.: E44106 Double torsion spring right - large support/wing

        Double torsion spring right between large support and wing. For Ultimate models.

      • Article-No.: E44113 Double torsion spring left - large support/wing

        Double torsion spring left between large support and wing. For Ultimate models.

      • Article-No.: E44111 Screw M6 × 90 mm with nut

        Screw M6 × 90 mm with nut for small goose neck for Ultimate trampolines.

      • Article-No.: E44110 Screw M12 × 170 mm

        Screw M12 × 170 mm for large goose neck for Ultimate trampolines.

      • Article-No.: E44112 Screw M12 × 25 mm with nut

        Screw M12 × 25 mm with nut, for connection large goose neck and small goose neck for Ultimate trampolines.

      • Article-No.: E44007 Rotary swivel for wire rope

        Rotary swivel for wire rope for Ultimate trampolines.

      • Article-No.: E44108 Allen screw M10 × 12 mm for leg section

        Allen screw M10 × 12 mm for leg section Large Trampolines, Minitramp Transport Trolley and Trampoline Longe Types.

      • Article-No.: E44206 Brass ring for leg

        Brass ring for leg Ultimate and Double-Minitramp Ultimate.

      • Article-No.: E40004 Plastic cap with flange

        Plastic cap with flange for 35 mm steel tube, bearing at hinge leg section/side rail. For Ultimate trampolines.

      • Article-No.: E31101 Sleeve for weld-on hook

        Sleeve for the weld-on hook on the trampoline frame to protect the anchor bars from abrasion. Colour: white.

  • downloads
  • FAQ
  • local dealers

Product details

Ultimate

Product details
  • Block friction bearing Engineered hinge with block friction bearing (more resistant to wear and tear, backlash free connection).
  • Block friction bearing Engineered hinge with block friction bearing (more resistant to wear and tear, backlash free connection).
  • Double torsion springs No annoying rubber cables due to double torsion springs at the leg brace design.
  • Easy-Lock-System (patented) Easy-Lock-System to set up the trampoline easily and efficiently.
  • Floor protection Better stability to the floor protection due to increased surface area.
  • Frame padding Available with 32 mm, 50 mm foldable and 50 mm stationary frame pads.
  • High tension Double flat-oval tube at the centre (high tension).
  • Laser cut parts Optimised foot construction with laser cut parts.
  • Plastic coated steel cables Less weight, anti-twist, low noise during transport.

related products

Safety platforms and safety mats "Competition Universal*"

Safety platforms and safety mats "Competition Universal*"

For Ultimate & Grand Master models

to the product

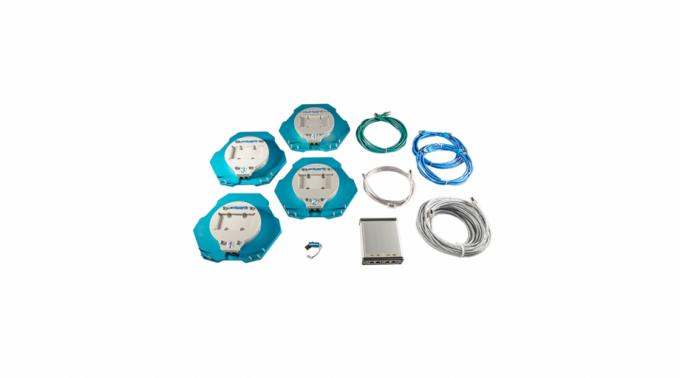

HDTS trampoline measurement device
